YIYIBYUS Recliner Replacement Motor Actuator, 24V DC Motor 9.8"/250mm Stroke Power Recliner Lift Chair Linear Actuator Motor or Electric Sofa Massage Chair Reclining Chairs

Description

• DC Motor- Motor replacement is DC motor, small mounting dimensions, easy to install,compact design,This recliner lift chair motor features a compact design that makes it ideal for many applications either in the medical or industrial sector.
• Durable Material- The electric recliner adopt for Aluminum actuator and durable PA6 plastic housing,safe and reliable.
• Application- This power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair.
• Features- Thrust up to 1000 N in push.and up to 1000 N in pull. Built-in limit switches (not adjustable). Aluminium outer tube 30 mm, Aluminium inner tube 24mm.
• The Best Service: If you have any questions about the product, you can contact us at any time, we will reply you as soon as possible!.

Specifications:
Product: Power recliner motor actuator
Stroke length: 250mm
Permanent magnet DC motor drive
Voltage: 24VDC
Maximum push / pull: 100KG / 100KG
Minimum installation size (distance between the push holes and the two holes before and after the return of the putter):L = S (stroke) + 175mm;
The distance between the push rod and the two holes before and after is extended to =2XS (stroke) +175mm
No load speed: maximum 40mm / S
Rated load rate: 5mm / S (600KG) -40mm / S (30KG)
Ambient temperature: -5 C + + 50 C
Standard protection level: IP44
Unextended dimensions: 250mm + 175mm = 425mm
Extended size: 250mm + 175mm + 250mm = 675mm

Features:
24VDC permanent magnet motor
Thrust up to 1000 N in push.and up to 1000 N in pull.
Elegant and compact design with small installation dimensions
Built-in limit switches (not adjustable)
Aluminium outer tube 30 mm
Aluminium inner tube 24mm
Steel back fixture
Standard protection class, IP44
Noise level 48 dB (A), actuator not loaded.
Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use.

Option:
Standard stroke, 25-800 mm, can design as customers requirement.
Free load speed, 6.5mm-45mm/s
Rated load speed, 4.5mm-40mm/s

Application:
This power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair.

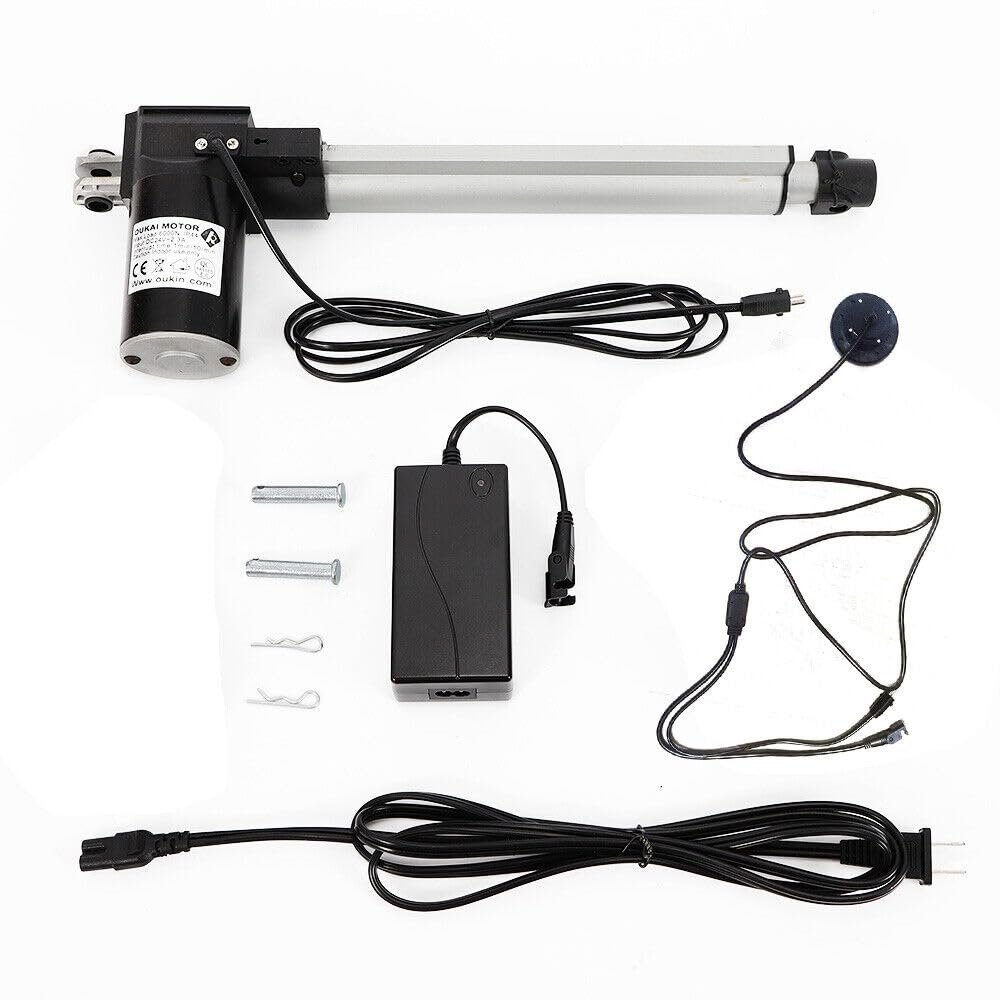

Packages:
1 x Recliner Replacement Motor Actuator
1 x 8-suffix AC Line
1 x DC Line
1 x Power Adapter
1 x Embedded Hand Controller
2 x Pins
