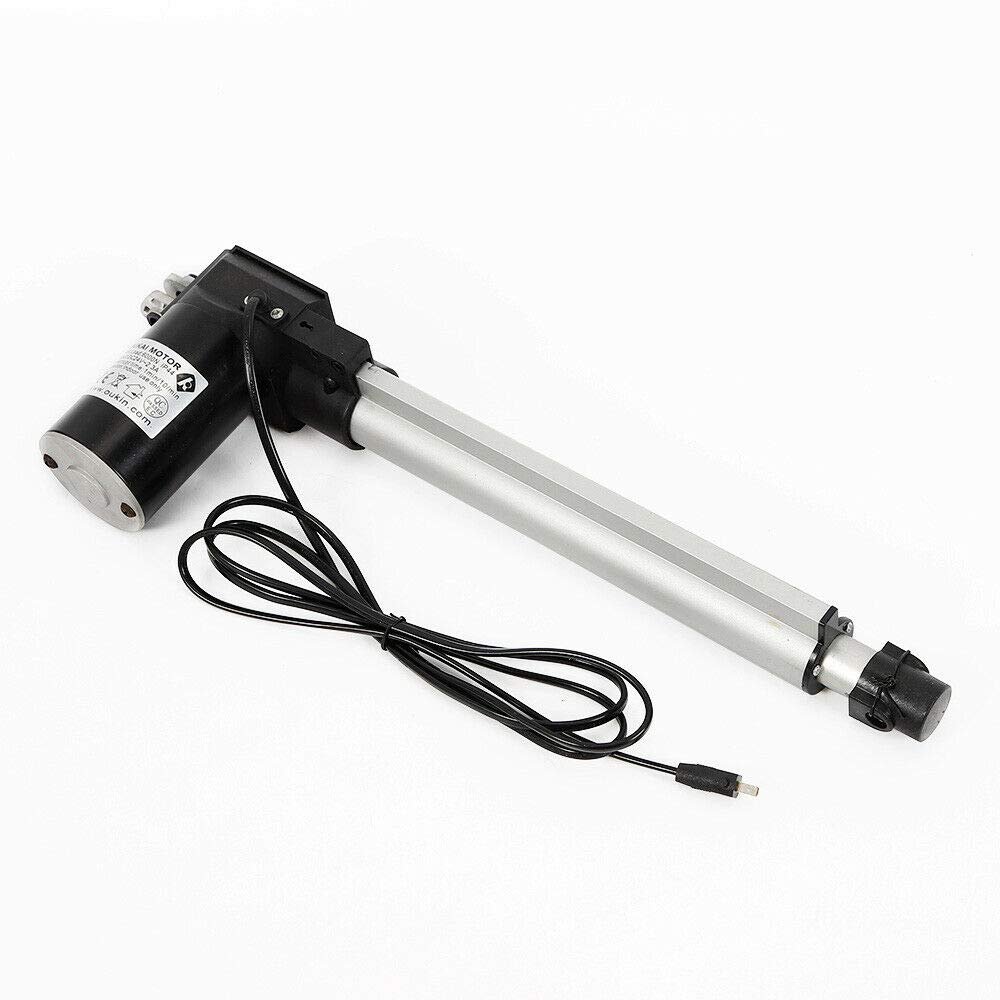

SHIOUCY Mulin Electric Power Recliner Motor Replacement Linear Actuator with Embedded Hand Controller for Sofa Lift Chair Couch Massage Seat Bed

Description

• DC MOTOR
• DURABLE MATERIAL
• Application
• Fast SHIP
• Packages

Specifications:
Stroke length: 250mm
Permanent magnet DC motor drive
Voltage: 24VDC
Maximum push / pull: 100KG / 100KG
Minimum installation size (distance between the push holes and the two holes before and after the return of the putter):L = S (stroke) + 175mm;
The distance between the push rod and the two holes before and after is extended to =2XS (stroke) +175mm
No load speed: maximum 40mm / S
Rated load rate: 5mm / S (600KG) -40mm / S (30KG)
Ambient temperature: -5 C + + 50 C
Standard protection level: IP44
Unextended dimensions: 250mm + 175mm = 425mm
Extended size: 250mm + 175mm + 250mm = 675mm

Features:
24VDC permanent magnet motor
Thrust up to 1000 N in push.and up to 1000 N in pull.
Elegant and compact design with small installation dimensions
Built-in limit switches (not adjustable)
Aluminium outer tube 30 mm
Aluminium inner tube 24mm
Steel back fixture
Standard protection class, IP44
Noise level 48 dB (A), actuator not loaded.
Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use.

Option:
Standard stroke, 25-800 mm, can design as customers requirement.
Free load speed, 6.5mm-45mm/s
Rated load speed, 4.5mm-40mm/s

Application:
This power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair. Connects to motor handset hand control via 5 pin style connector, and connects to the power transformer via the standard 2 pin style connector.

Packages:
1 x Recliner Replacement Motor Actuator
1 x 8-suffix AC Line
1 x DC Line
1 x Power Adapter
1 x Embedded Hand Controller
2 x Pins
