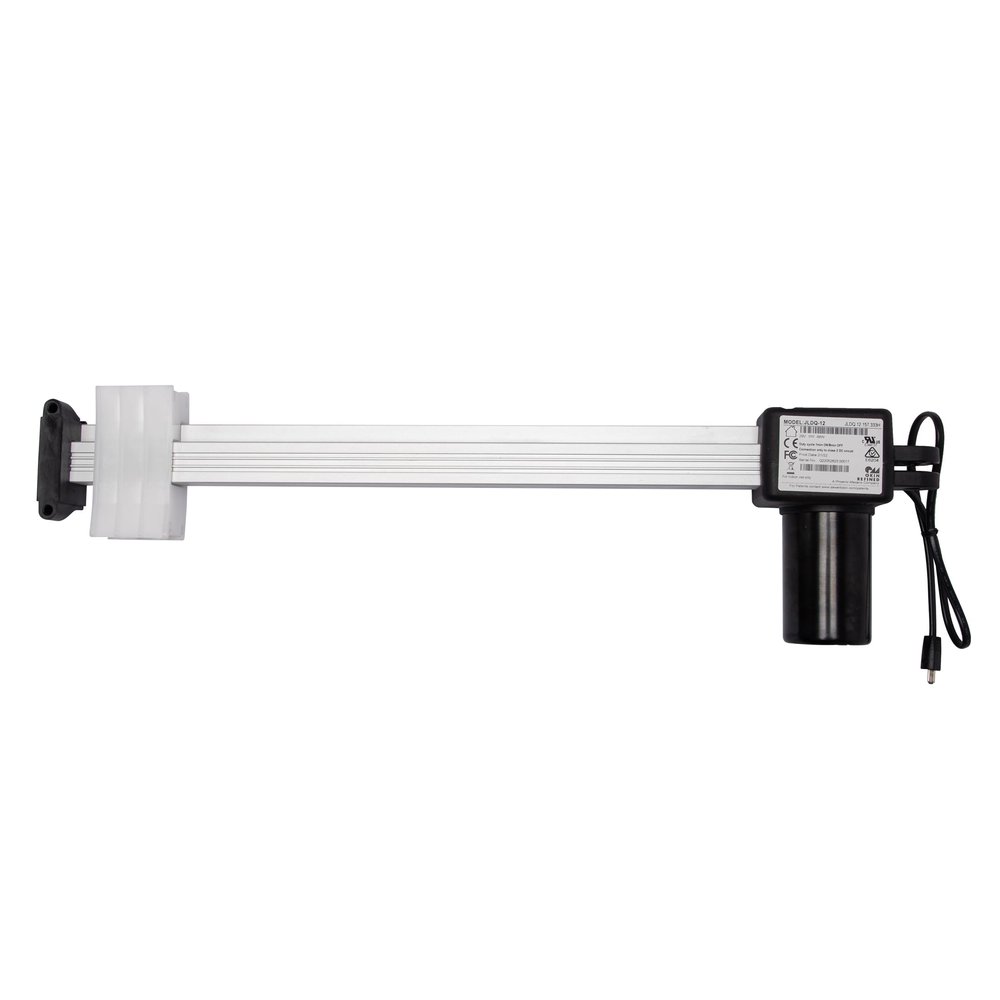

Okin Motor Model JLDQ-12 & JLDQ.12.157.333H, Power Recliner Actuator Electric Lift Chair Motor Replacement Parts for JLDQ.12.157.333L

Description

• APPLICATION: Different actuator/motors are not compatible with frame, the frame has strict demand for actuator/motors' minimum install dimension, stroke and plugs. The motor is suggested to replace OKIN model JLDQ.12.157.333H, and also can replce JLDQ.12.157.333L series, a little difference may in plug location and extra wire but not affect the function and use. Please check your motor brand and model first.
• DESCRIPTION: The actuator motor set is made of 1 motor and 2 connectors, connector with 5-pin inside-the-motor round plug is for switch hand control, connector with 2-pin square plug is for power supply.
• SPECIFICATION: Appearance: black (PA), silver white (aluminum); Stroke: 333 mm ; Minimum Inst Size (shrink): 157 mm; Maximum Inst Size: 490 mm; Load: push force: 750 N pull force: 750 N.
• NOTE: Please troubleshoot the switch and power supply first, then check the motor and plug, see if it matches your recliner motor.
• PACKAGE: 1* Okin refined motor. Easy to install.

Okin Refined-R Model: JLDQ.12.157.333H Recliner Motor. This is original Okin JLDQ motor
Technical data:
Load: Push force: 750N, Pull force: 750N
Stroke: 333 mm, move with slide block
Operation frequency: On 1 min/Off 8min
The motor is suggested to replace OKIN model JLDQ.12.157.333H, and also can replce JLDQ.12.157.333L series, a little difference may in plug location and extra wire but not affect the function and use. Please check your motor brand and model first.
