NeNchengLi 24V Electric Recliner Motor Linear Actuator Kit Electric Recliner Motor Replacement kit Parts Sofa Recliner Lift Chair Motor Actuator 250mm Stroke Lengh

Description

• Product ParameterThis is electric recliner motor Linear actuator kit, Stroke Length: 250mm, Unextended Dimensions: 250mm + 175mm = 425mm, Extended Size: 250mm + 175mm + 250mm = 675mm. Maximum Push / Pull: 100KG / 100KG, No Load Speed: Maximum 40mm / S, Rated Load Rate: 5mm / S (600KG) -40mm / S (30KG).
• DC Motorelectric recliner Motor replacement is DC motor, small mounting dimensions, easy to install,compact design,This recliner lift chair motor features a compact design that makes it ideal for many applications either in the me-di-cal or industrial sector.
• Durable MaterialThe electric recliner lift chair motor adopt for Aluminum actuator and durable P-A6 plastic housing,safe and reliable. Noise level 48 dB (A), Actuator Not Loaded. Duty cycle, max 10% or 2 minutes continuous use followed by 18 minutes not in use.
• High Performance24VDC permanent ma-gnet motor. Thrust up to 1000 N in push. and up to 1000 N in pull. Elegant and compact design with small installation dimensions. Built-in limit switches (not adjustable). Aluminium Outer Tube 30 Mm, Aluminium Inner Tube 24mm.
• Wide ApplicationThis power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair. Minimum installation size: the distance between the push rod and the two holes before and after is extended to =2xs (stroke) +175mm.
• NOTE: PLEASE CHECK THE SIZE OF THE PRODUCT BEFORE PURCHASE TO SEE IF IT MEETS YOUR NEEDS.

Specifications:
Product: Power Recliner Motor Actuator
Stroke Length: 250mm
Unextended Dimensions: 250mm + 175mm = 425mm
Extended Size: 250mm + 175mm + 250mm = 675mm
Permanent Mag-net Dc Motor Drive;
Voltage: 24VDC
Maximum Push / Pull: 100KG / 100KG
Minimum Installation Size (Distance Between The Push Holes And The Two Holes Before And After The Return Of The Putter):L = S (Stroke) + 175mm;
The Distance Between The Push Rod And The Two Holes Before And After Is Extended To =2XS (Stroke) +175mm
No Load Speed: Maximum 40mm / S
Rated Load Rate: 5mm / S (600KG) -40mm / S (30KG)
Ambient Temperature: -5 C + + 50 C
Standard Protection Level: Ip44
Net Weight:3.3kg
Gross Weight:3.66kg
Features:
24VDC Permanent Mag-net Motor
Thrust Up To 1000 N In Push. And Up To 1000 N In Pull.
Elegant And Compact Design With Small Installation Dimensions
Built-In Limit Switches (Not Adjustable)
Aluminium Outer Tube 30 Mm
Aluminium Inner Tube 24mm
Steel Back Fixture
Standard Protection Class, Ip44
Noise Level 48 dB (A), Actuator Not Loaded.
Duty Cycle, Max 10% Or 2 Minutes Continuous Use Followed By 18
Minutes Not In Use.
Option:
Standard Stroke, 25-800 Mm, Can Design As Customers Requirement.
Free Load Speed, 6.5mm-45mm/s
Rated Load Speed, 4.5mm-40mm/s
Application:
This Power Recliner Lift Chair Linear Actuator Motor Will Open And Close The Lift Mechanism Of Power Recliner Or Lift Chair.

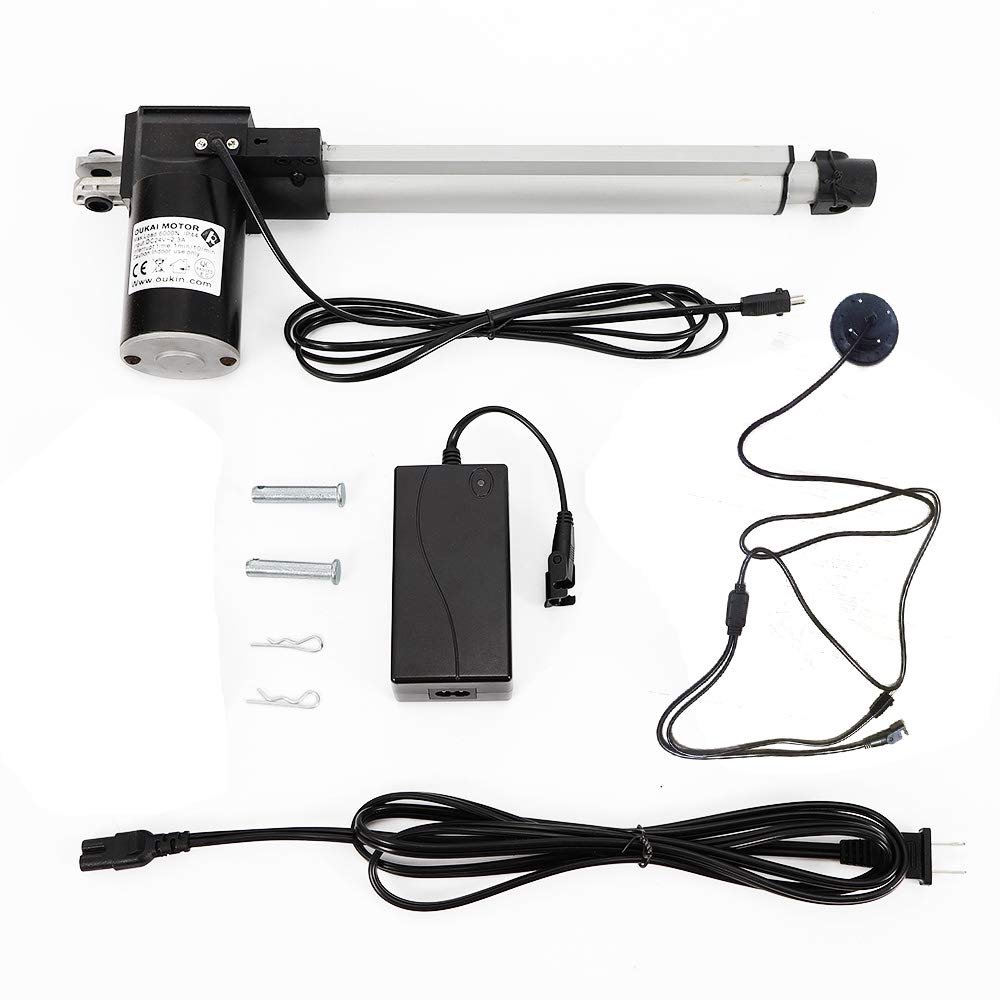

Packages:
1 x Recliner Replacement Motor Actuator
1 x 8-Suffix AC Line
1 x DC Line
1 x Power Adapter
1 x Embedded Hand Controller
2 x Pins
2 x Cotter Pins
