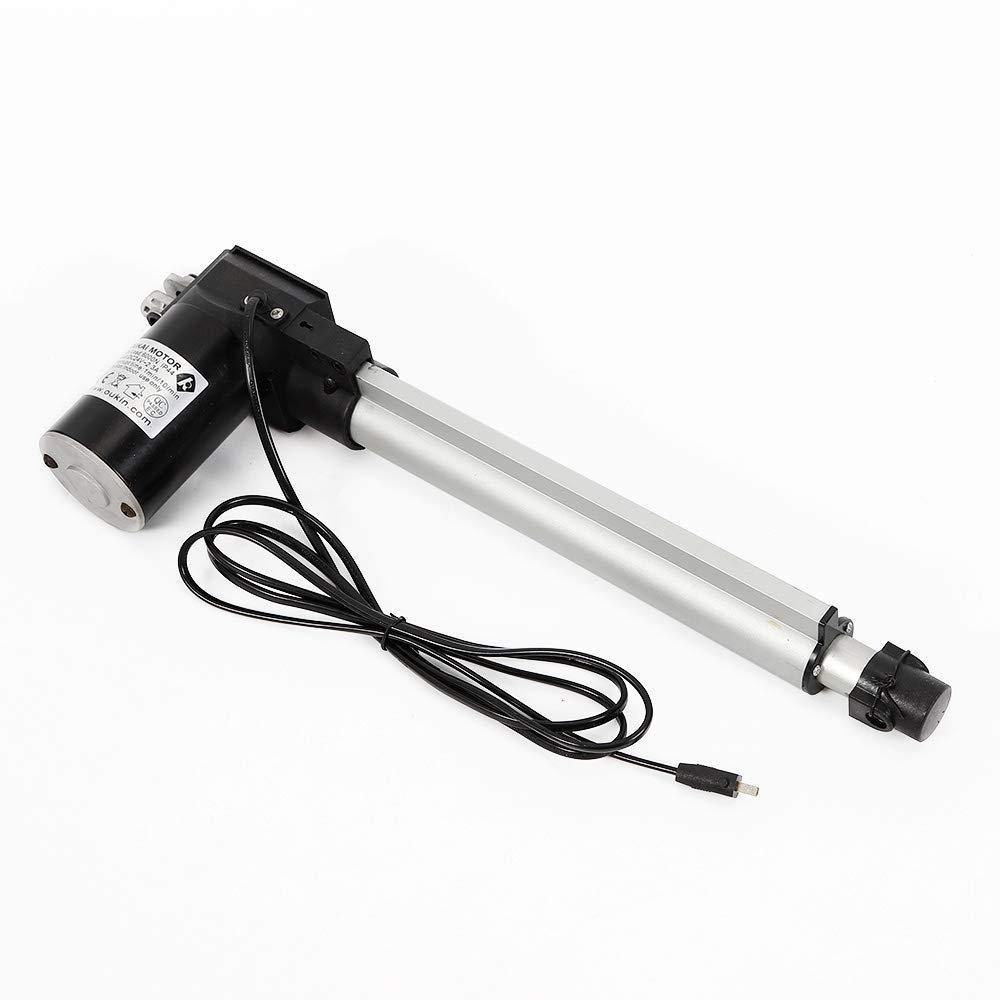

LEYSRIS 24VDC Electric Recliner Motor Replacement Kit, 1000 N Push/Pull Linear Actuator for Recliner Lift Chair

Description

• High Efficiency: Thrust up to 1000 N in push, and up to 1000 N in pull.
• Packages: Packages: 1 x Recliner Replacement Motor Actuator, 1 x 8-Suffix AC Line, 1 x DC Line, 1 x Power Adapter, 1 x Embedded Hand Controller, 2 x Pins, 2 x Cotter Pins.
• Application: This power recliner lift chair linear actuator motor will open and close the lift mechanism of the power recliner or lift chair.
• Specifications: Stroke Length: 250mm, Unextended Dimensions: 425mm, Extended Size: 675mm, Maximum Push / Pull: 100KG / 100KG.
• Feature: Elegant and compact design with small installation dimensions. Built-in limit switches (not adjustable). Aluminium outer tube 30 mm. Aluminium inner tube 24mm. Standard protection class, ip44. Free load speed, 6.5mm-45mm/s. Rated load speed, 4.5mm-40mm/s.

Specifications:
Product: Power Recliner Motor Actuator
Stroke Length: 250mm
Unextended Dimensions: 250mm + 175mm = 425mm
Extended Size: 250mm + 175mm + 250mm = 675mm
Permanent Magnet Dc Motor Drive;
Voltage: 24VDC
Maximum Push / Pull: 100KG / 100KG
Minimum Installation Size (Distance Between The Push Holes And The Two Holes Before And After The Return Of The Putter):L = S (Stroke) + 175mm;
The Distance Between The Push Rod And The Two Holes Before And After Is Extended To =2XS (Stroke) +175mm
No Load Speed: Maximum 40mm / S
Rated Load Rate: 5mm / S (600KG) -40mm / S (30KG)
Ambient Temperature: -5 C + + 50 C
Standard Protection Level: Ip44
Net Weight:3.3kg
Gross Weight:3.66kg
Features:
24VDC Permanent Magnet Motor
Elegant And Compact Design With Small Installation Dimensions
Built-In Limit Switches (Not Adjustable)
Aluminium Outer Tube 30 Mm
Aluminium Inner Tube 24mm
Steel Back Fixture
Standard Protection Class, Ip44
Noise Level 48 dB (A), Actuator Not Loaded.
Duty Cycle, Max 10% Or 2 Minutes Continuous Use Followed By 18
Minutes Not In Use.
Option:
Standard Stroke, 25-800 Mm, Can be Design As Customers Requirement.
Free Load Speed, 6.5mm-45mm/s
Rated Load Speed, 4.5mm-40mm/s
Application
This Power Recliner Lift Chair Linear Actuator Motor Will Open And Close The Lift Mechanism Of the Power Recliner Or Lift Chair.
Packages:
1 x Recliner Replacement Motor Actuator
1 x 8-Suffix AC Line
1 x DC Line
1 x Power Adapter
1 x Embedded Hand Controller
2 x Pins
2 x Cotter Pins
