KinHall Electric Recliner Motor Actuator Replacement Chair Lift Linear Actuator Motor 24V for Chair Lift and Recliner Motor

Description

• SpecificationsStroke Length: 250mm, Voltage: 24VDC, Max Push/Pull: 100KG/100KG, Ambient Temperature: -5 C++ 50 C, Standard Protection Level: IP44.
• Powerful Recliner Actuator- This 24VDC permanent magnet motor actuator can push to 1000 N and pull to 1000 N, suitable for powering any recliner.
• Easy to Use- This electric recliner lift linear actuator motor will turn on and off the lift mechanism of an electric recliner or chair lift, connected to the motor handle via a 5-pin connector, the hand control and the power transformer via a standard 2-pin connection device for easy operation.
• Widely used- Electric sofa, massage chair, TV lift, sofa, double sofa, combination reclining chair, reclining chair, sofa, sectional sofa.
• WHAT YOU WILL GET1 x Recliner Replacement Motor Actuator, 1 x 8-Suffix AC Cable, 1 x DC Cable, 1 Power Adapter, 1 x Embedded Hand Control, 2 Pins, 2 Openings pin.

Specification:
Product: Power Recliner Motor Actuator
Stroke length: 250mm
Unfolded size: 250mm + 175mm = 425mm
Extended size: 250mm + 175mm + 250mm = 675mm
Permanent magnet DC motor drive;
Voltage: 24VDC
Maximum push/pull: 100KG/100KG
Minimum installation size (the distance between the two holes before and after the push rod returns): L=S (stroke) +175mm;
The distance between the push rod and the front and rear holes is extended to = 2XS (stroke) + 175mm
No-load speed: maximum 40mm/S
Rated load rate: 5mm / S (600KG) -40mm / S (30KG)
Ambient temperature: -5 C + + 50 C
Standard protection grade: Ip44
Net weight: 3.3kg
Gross weight: 3.66kg

feature:
24VDC permanent magnet motor
Push force up to 1000 N, pull force up to 1000 N.
Elegant and compact design, small installation size
Built-in limit switch (not adjustable)
Aluminum outer tube 30 mm
Aluminum inner tube 24mm
Steel back clamp
Standard protection grade, IP44
Noise level 48 dB (A), actuator not loaded.
Duty cycle, 10% max or 2 minutes continuous use, then 18
Minutes are not used.
Options:
Standard stroke, 25-800mm, can be designed according to customer requirements.
Free loading speed, 6.5mm-45mm/s
Rated load speed, 4.5mm-40mm/s

application
This electric recliner chair lift linear actuator motor will turn on and off the lift mechanism of the electric recliner or chair lift.

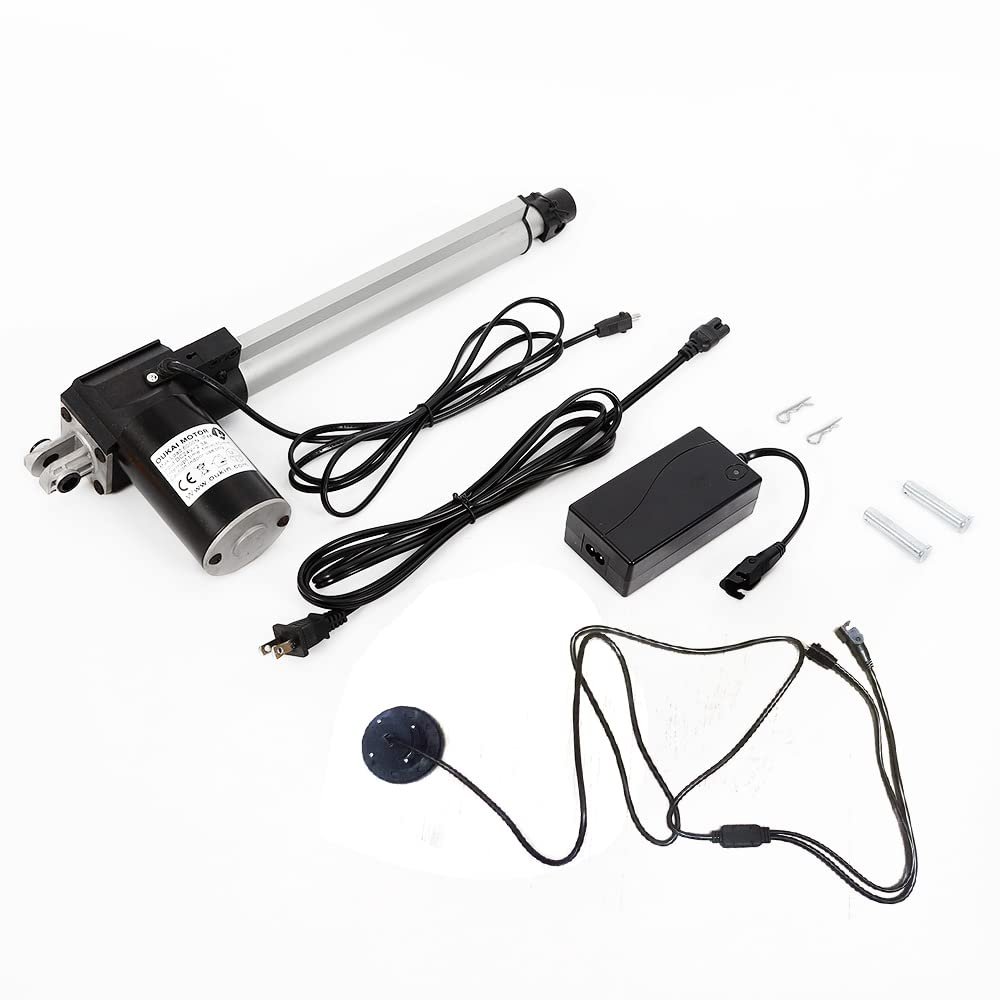

combo:
1 x recliner replacement motor actuator
1 x 8-suffix AC cable
1 x DC wire
1 power adapter
1 x Embedded Hand Control
2 pins
2 cotter pins
