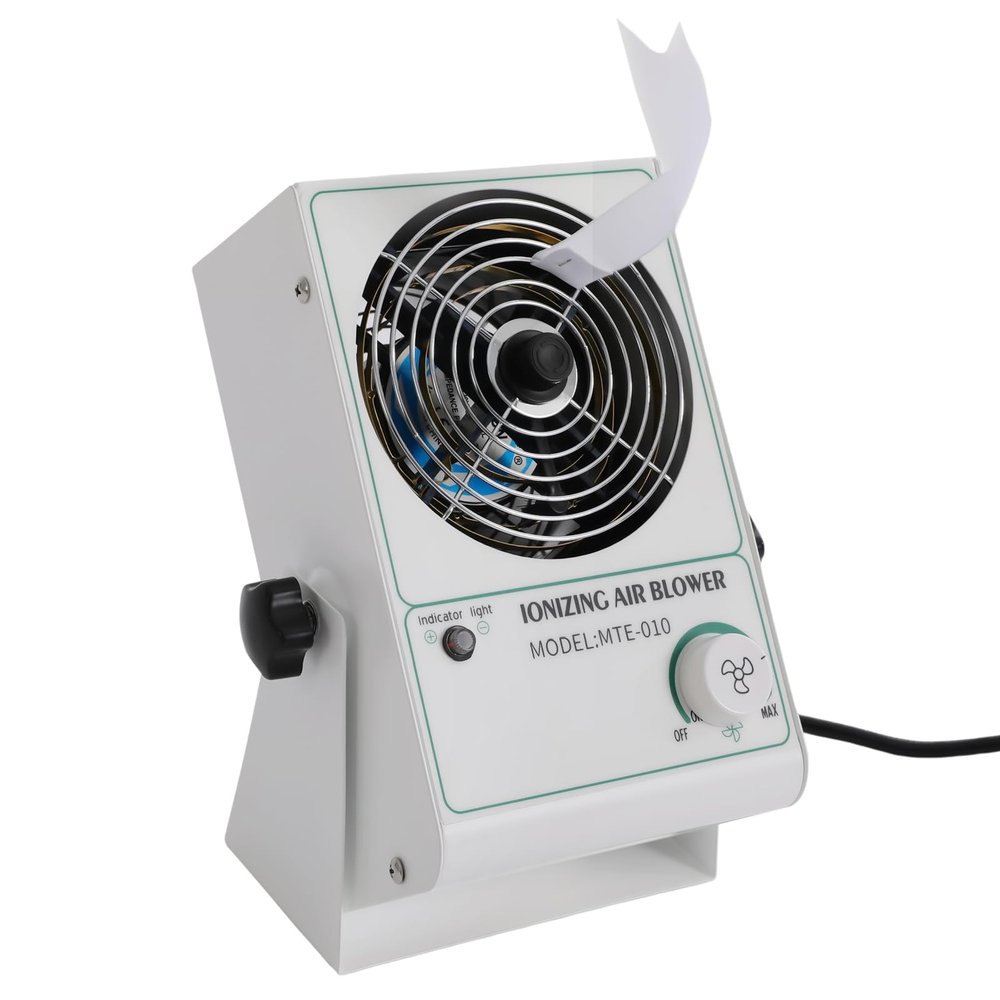

Ionizing Air Blower Fan Ion Anti-Static Elimination Ionizer Desktop Ion Electric Fan for Eliminating Static Electricity 110V 60Hz

Description

• Ionizing Air Blower: Operating voltage 110V/60Hz, current consumption 0.25A, air velocity 45-110CFM (adjustable). Operating temperature 0-50C, dimensions 170(L) x 90(W) x 260(H) mm, air flow characteristics 40cm x 60cm, air flow area 40cm 60cm
• Design Characteristic: Generates a large number of positive and negative airflow to neutralize charge on objects. Fast, targeted neutralization of static charge with directional ionization designed for the work area
• Static Electricity Elimination: When the surface charge is negative, it absorbs positive charge from the airflow. When the surface charge is positive, it absorbs negative charge from the airflow, neutralizing static electricity on the object's surface
• Pure Copper Ion Needle: Performs well in ionized air and heat dissipation. Includes cleaning brush for easy maintenance and regular cleaning of ion needles
• Wide Applications: Suitable for eliminating static electricity in mobile phone assembly lines, light guide plate assembly, vibration plate feeder, capsule filling production lines, etc

Description:
Ion fan can generate a large number of positive and negative airflow,which can neutralize the charge on the object.
Fast, targeted neutralization of static charge,directional ionization designed for the work area.
Minimize the time required to perform normal maintenance and match ionization performance to the target work area.
Minimize component loss due to accidental ionization stops,and user comfort helps ensure that ionization is still present.
When the charge on the surface of the object is negatively charged,it will absorb the positive charge in the airflow.When the charge on the surface of the object is positive,it will absorb the negative charge in the airflow,so that the static electricity on the surface of the object is And,to achieve the purpose of eliminating static electricity.
Features:
1.Neutralization ions are electrostatically fast.
2.The ionized airflow covers a large area.
3. Wide range of wind adjustment.
4.There is a special ion emission cleaner.
5.Cold air installation.
6.Ionization indicator
7.The fan has good grounding protection.

Specification:
Operating voltage: 110V/60Hz
Current consumption: 0.25A
Air output: 45~110CFM
Operating temperature: 0~50C
Noise: minimum 49dB maximum 59dB
Dimensions: 170 (L) 90 (W) 260 (H) mm
Weight: 3kg
Residual voltage: 0V10V
Air flow area: 40cm 60cm
Ion balance: 10V
Static test result

Package includes:
1X antistatic ion fan

Test Conditions:
Test voltage: 1KV-100V Ambient temperature: 22 C Humidity 60%
Neutralization time: distance 300mm positive 1.2s negative 1.2s
distance 600mm positive 2.5s negative 2.4s
distance 900mm positive 4.0s negative 3.9s
Residual voltage: distance 300mm positive and negative 15V
Heating power: 250W
* The ion balance voltage and static elimination time are in compliance with the ESD standard,and the static elimination time is measured from the test voltage of 1000v to 100v.
* The test instrument uses the ME268A electrostatic tester (not included).
*The test data will vary depending on the temperature and humidity of the surrounding air.
