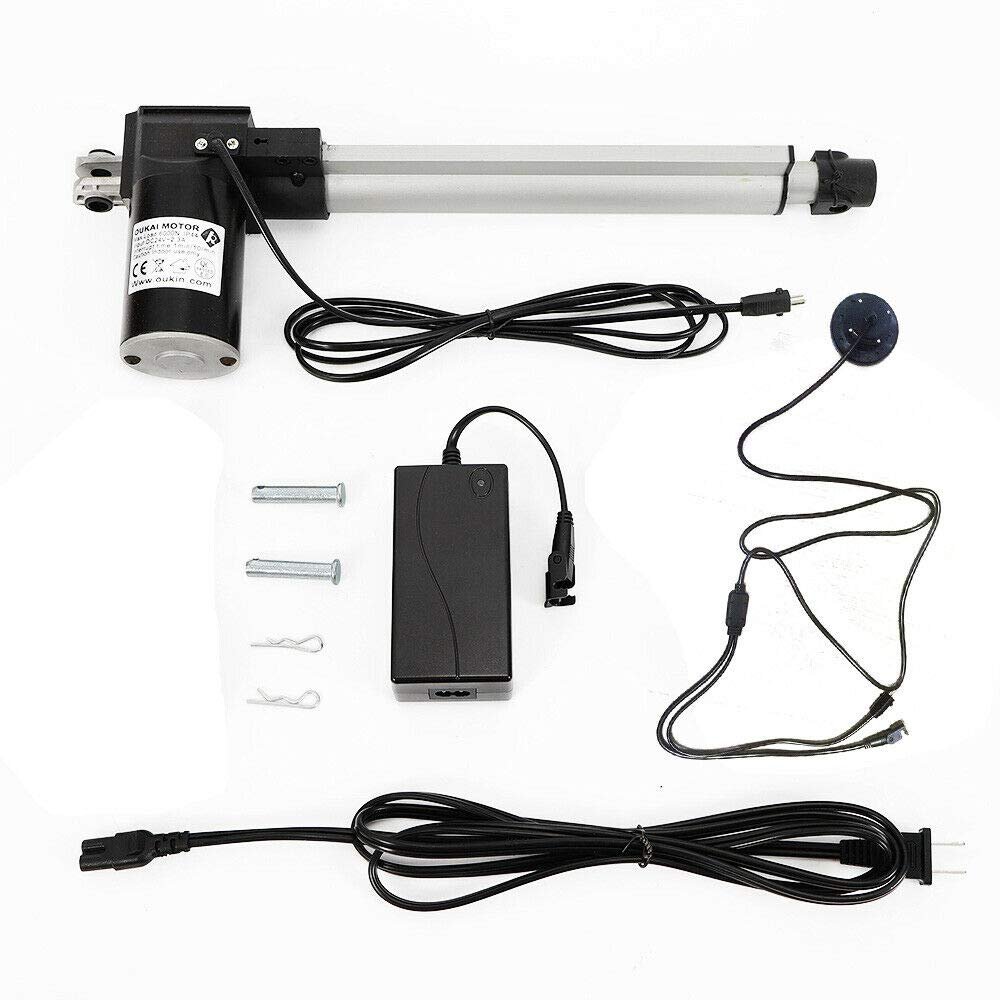

Gdrasuya10 Recliner Lift Chairs Motor Actuator Electric Power Recliner Replacement Motor 24VDC Lift Linear Actuator Motor with Hand Controller 250MM

Description

• Product Parameter: Item type: recliner replacement motor actuator. Stroke length: 250mm. Voltage: 24vdc. Maximum push / pull: 100kg / 100kg. Standard protection level: ip44. Unextended dimensions: 250mm + 175mm = 425mm. Extended size: 250mm + 175mm + 250mm = 675mm.
• High Quality: The electric recliner adopts aluminum actuator and durable pa6 plastic shell, which is safe and reliable.
• Powerful DC Motor: Motor replacement is DC motor, small mounting dimensions, easy to install,compact design. This recliner lift chair motor features a compact design that makes it ideal for many applications either in the medical or industrial sector.
• Wide Application: This power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair. Connects to motor handset hand control via 5 pin style connector, and connects to the power transformer via the standard 2 pin style connector.
• Service Guarantee: After receiving the product, if you have any questions about lift chairs motor actuator, please contact us in time, we will do our best to solve it for you.

Product description:
Specifications:
Product: Power recliner motor actuator
Stroke length: 250mm
Permanent magnet DC motor drive
Voltage: 24VDC
Maximum push / pull: 100KG / 100KG
Minimum installation size (distance between the push holes and the two holes before and after the return of the putter):L = S (stroke) + 175mm;
The distance between the push rod and the two holes before and after is extended to =2XS (stroke) +175mm
No load speed: maximum 40mm / S
Rated load rate: 5mm / S (600KG) -40mm / S (30KG)
Ambient temperature: -5 C + + 50 C
Standard protection level: IP44
Unextended dimensions: 250mm + 175mm = 425mm
Extended size: 250mm + 175mm + 250mm = 675mm
Features:
24VDC permanent magnet motor
Thrust up to 1000 N in push.and up to 1000 N in pull.
Elegant and compact design with small installation dimensions
Built-in limit switches (not adjustable)
Aluminium outer tube 30 mm
Aluminium inner tube 24mm
Steel back fixture
Standard protection class, IP44
Noise level 48 dB (A), actuator not loaded.
Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use.
Option:
Standard stroke, 25-800 mm, can design as customers requirement.
Free load speed, 6.5mm-45mm/s
Rated load speed, 4.5mm-40mm/s
Application:
This power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair.
