DNYSYSJ Power Reclinear Lift Chair Actuator Electric Recliner Motor Replacement for Chair Reclining Motor 24VDC

Description

• Thrust up to 6000 N in push, and up to 6000 N in pull.
• Built-in limit switches (not adjustable), Noise level 48 dB (A), actuator not loaded.
• Elegant and compact design, small size and easy to install.
• Steel back fixture, standard protection class, IP44.
• Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use.

Specification:
Product name: Power recliner motor actuator
Stroke length: 330mm
Total dimensions: 530mm
Permanent magnet DC motor drive;
Voltage: 24VDC
Maximum push / pull: 600KG / 6000N
Speed: maximum 5mm / S
Ambient temperature: -5 C + + 50 C
Standard protection level: IP44

Features:
Thrust up to 6000 N in push, and up to 6000 N in pull.
Built-in limit switches (not adjustable), Noise level 48 dB (A), actuator not loaded.
Elegant and compact design, small size and easy to install.
Steel back fixture, standard protection class, IP44.
Duty cycle, Max 10% or 2 minutes continuous use followed by 18 minutes not in use.

Description:
This power recliner lift chair linear actuator motor will open and close the lift mechanism of power recliner or lift chair. Connects to motor handset hand control via 5 pin style connector, and connects to the power transformer via the standard 2 pin style connector.

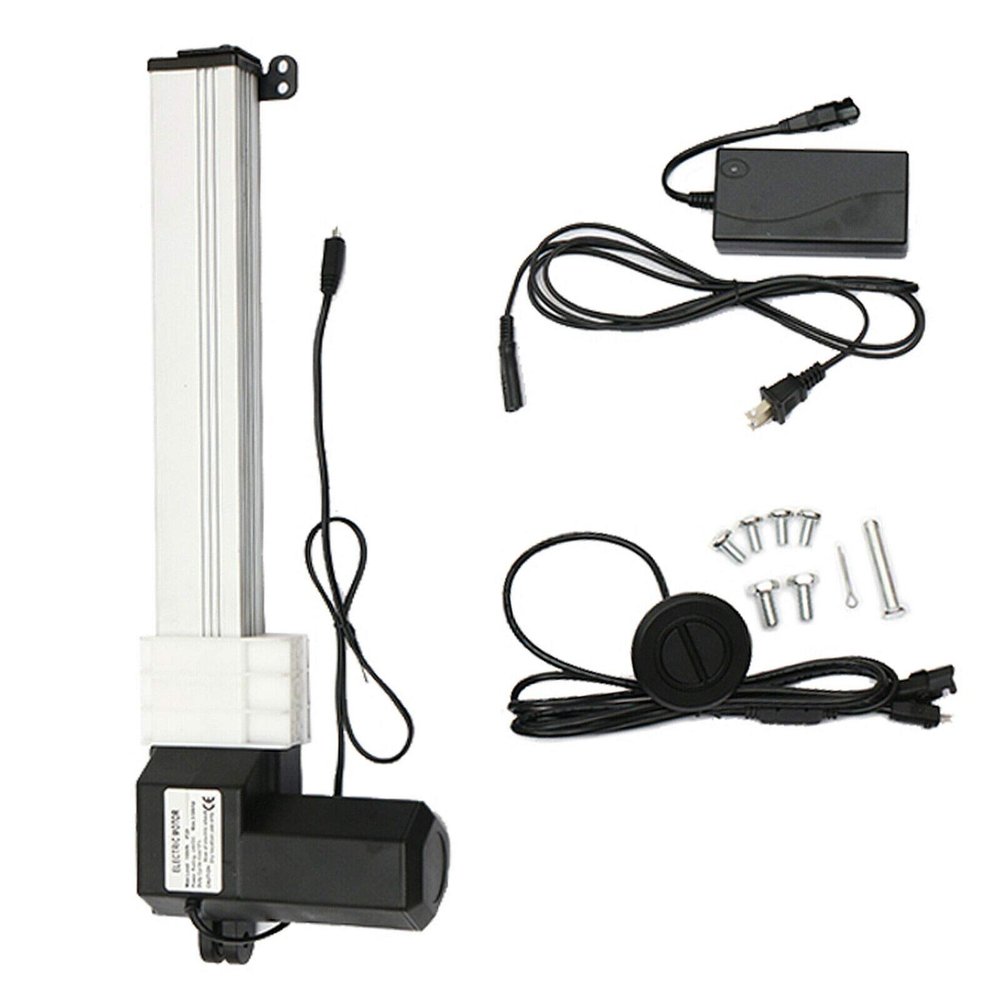

Package Included:
1 x push rod motor
1 x switching power supply
1 x power cord
1 x wired manual controller
1 x cotter pin
1 x pin
2 x external hexagon 10 * 20 screw
4 x flat head screw 8 * 16

Thanks for shopping in NengceNaUS.

If you have any questions, please feel free to contact us.
