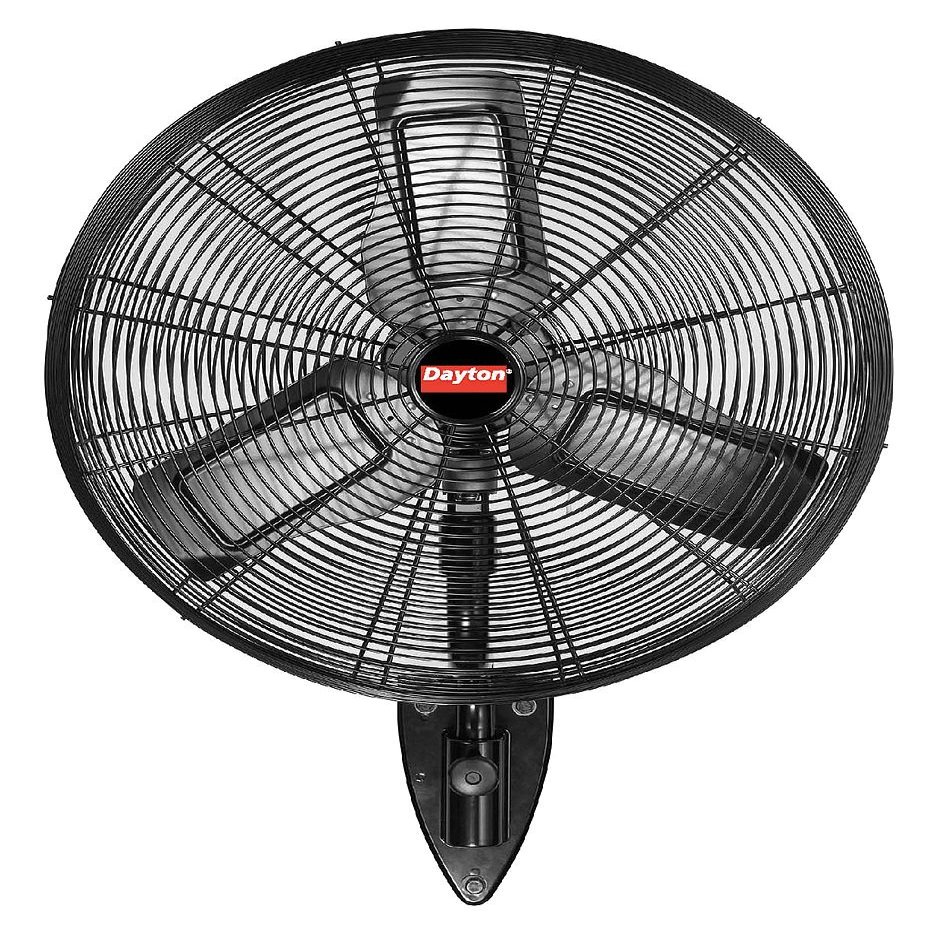

Dayton 6ALF1 Air Circulator Wall Mount 30 In, 115 V

Description

This commercial air circulator is designed for moving air and cooling in clean, dry environments. It offers a high volume of air circulation at low sound levels for commercial applications including schools, greenhouses, and sporting events. It also offers a permanently lubricated motor with automatic reset thermal protection, and a stamped aluminum, 3-blade propeller and circulator head with locking tilt adjustment.

Item: Air Circulator
Blade Dia.: 30"
Mobile/Stationary: Stationary
Oscillating: Yes
Speeds: 2
Voltage: 115
Phase: 1
CFM High: 8200
CFM Low: 7260
Air Velocity (FPM) @ 20 Ft.: 610/525
Motor HP: 1/2
Motor RPM: 1100/850
Operating Amps: 4.2/3.5
Fan Mounting Location: Wall
Fan Accessory Style: Standard
Fan RPM: 1100/850
Environmental Applications: Commercial
Assembled: No
CFM/Watt: 18.22
Air Velocity (FPM) @ 10 Ft.: 994/817
Air Velocity (FPM) @ 40 Ft: 261/180
Sound Level: 77dBA
Max. Ambient Temp.: 104 Degrees F
Hz: 60
Watts: 450/369
Motor Type: Permanent Split Capacitor
Drive Type: Direct
Motor Enclosure: Totally Enclosed Air-Over
Motor Insulation: Class B
Thermal Protection: Auto
Bearing Type: Ball
Height: 43-1/2"
Width: 33"
Max. Depth: 24-1/4"
Cord Length: 10 ft.
Number of Blades: 3
Blade Material: Aluminum
Shaft Dia.: 5/8"
Housing Material: Steel
Guard Material: Steel
Wire Guard Finish: Gloss Black Powder Coated
Application: Spot Cooling and People Cooling
Standards: cULus Listed E19455
Includes: Wall Bracket and Secondary Safety Support Cable
