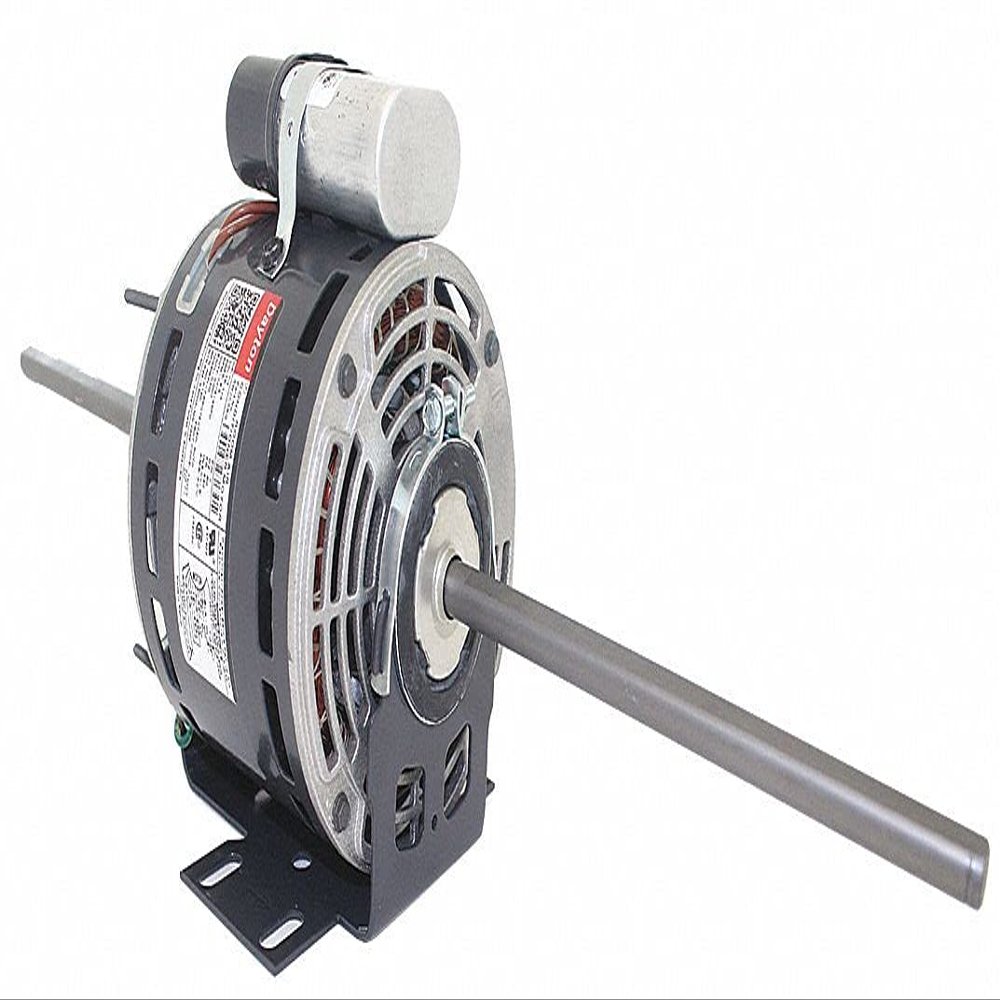

Dayton 1/10 HP Room Air Conditioner Motor, Permanent Split Capacitor, 1050 Nameplate RPM, 277 Voltage, Frame 42-5WJA9

Description

• Item:-Room Air Conditioner Motor
• Motor Application:-HVAC/R
• Motor Sub Application:-Room Air Conditioner
• Motor Type:-PSC
• Enclosure:-Open Air-Over

Specifications: Item:-Room Air Conditioner Motor Motor Application:-HVAC/R Motor Sub Application:-Room Air Conditioner Motor Type:-PSC Enclosure:-Open Air-Over Duty:-Continuous Air Over HP:-1/10 Nameplate RPM:-1050 Voltage:-277 Frame:-42Y Service Factor:-1.0 Hz:-60 Full Load Amps:-0.60 Thermal Protection:-Auto Insulation Class:-B Max. Ambient Temp.:-60 Degrees C Number of Speeds:-4 Rotation:-CW/CCW Phase:-1 Mounting:-Cradle/Stud Bearings:-Sleeve Body Dia.:-5" Length Less Shaft:-4-3/4" Shaft Type:-Flat Shaft Dia.:-1/2" Shaft Length:-8-1/2" Ea. Stud Pattern:-2-5/16 x 4" Stud Size:-8-32 UNC Ring to Ring Center:-4-1/4" Resilient Ring Dia.:-2-1/2" Bolt Circle Dia.:-4-11/16" Lead Length:-59" Includes:-3 MFD 370VAC Capacitor RPM Range:-1001-1100 Capacitor Required:-Included Standards:-UL Recognized (E37403), CSA Certified (244617) UNSPSC:-26101602
