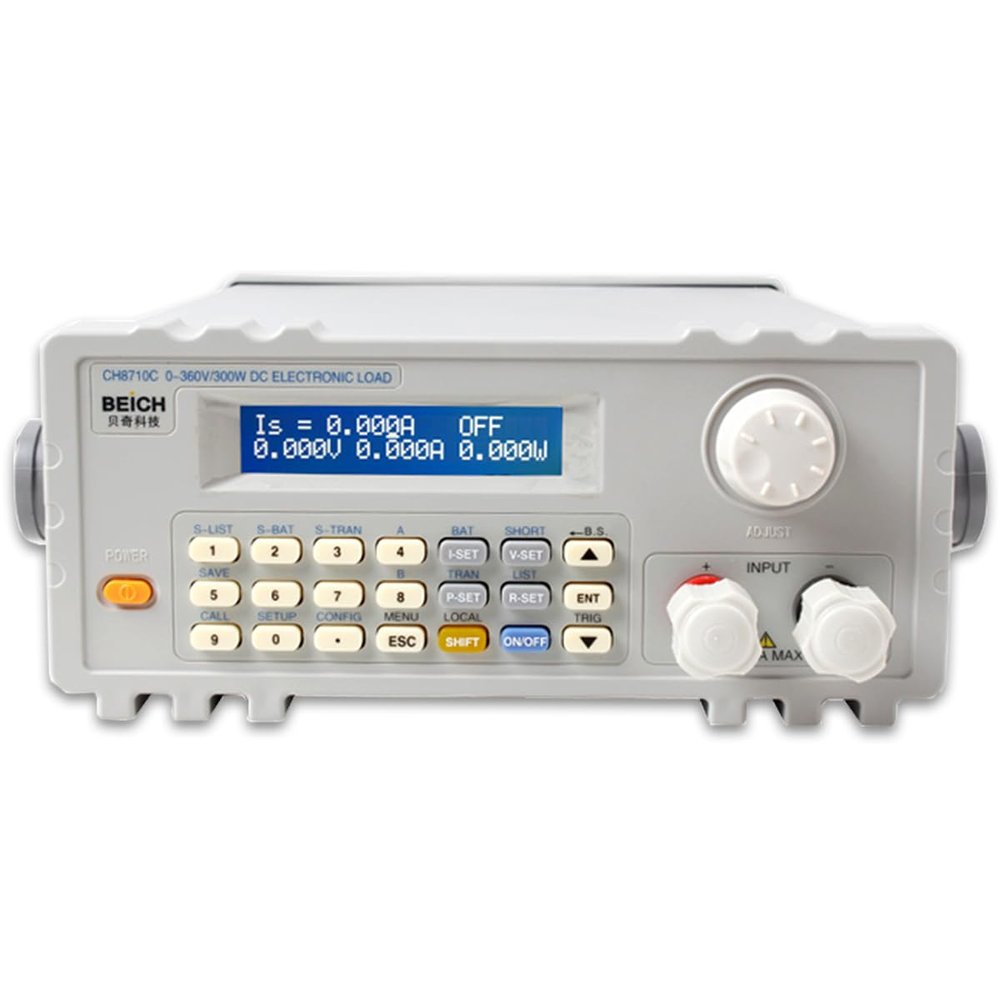

CH8710C Programmable DC Electronic Load Tester 360V / 30A 300W Battery Capacity Discharge Tester

Description

• WIDE INPUT VOLTAGE0 - 360V Input voltage, 300w, wide range of applications
• 4 STATIC MODESDC 0 - 360 V/ 1mA - 30 A, total power up to 150 W. CC, CV, CR, CP 4 basic testing modes.
• OTHER TESTING MODESDynamic test mode, Battery test mode, List automatic test mode, Remote test functionality, Simulate load short circuit.
• Battery test: Input voltage: 0.8-360V, maximum capacity: 999A/H Resolution: 10 mA, Discharge Time: 1~60000 seconds
• PROTECTIONSOver voltage / over current / over power / over heat / polarity reversion protection.

This is an programmable economical DC electronic load with wide voltage, which can withstand input voltage up to 360V. It can be widely used in charger, switching power supply, linear power supply, battery and other production line testing.

Parameters:
Input voltage: 0 - 360V
Input current: 1mA - 30A
Input power300W
Input Impedance200k
