BoTaiDaHong 24V 250mm Power Recliner Replacement Motor Actuator Sofas Lift Mechanism Repair for Electric Sofa Massage Chair Reclining Chairs Motor

Description

Specifications:
Product: Power recliner motor actuator
Stroke length: 250mm
Permanent magnet DC motor drive;
Voltage: 24VDC
Maximum push / pull: 600KG / 600KG
Minimum installation size (distance between the push holes and the two holes before and after the return of the putter):L = S (stroke) + 175mm;
The distance between the push rod and the two holes before and after is extended to =2XS (stroke) +175mm
No load speed: maximum 40mm / S
Rated load rate: 5mm / S (600KG) -40mm / S (30KG)
Ambient temperature: -5 C + + 50 C
Standard protection level: IP44
Features:
Steel back fixture
Standard protection class, IP44
Noise level 48 dB (A), actuator not loaded.
Duty cycle, Max 10% or 2 minutes continuous use followed by 18
minutes not in use.
Option:
Standard stroke, 25-800 mm, can design as customers requirement.
Free load speed, 6.5mm-45mm/s
Rated load speed, 4.5mm-40mm/s

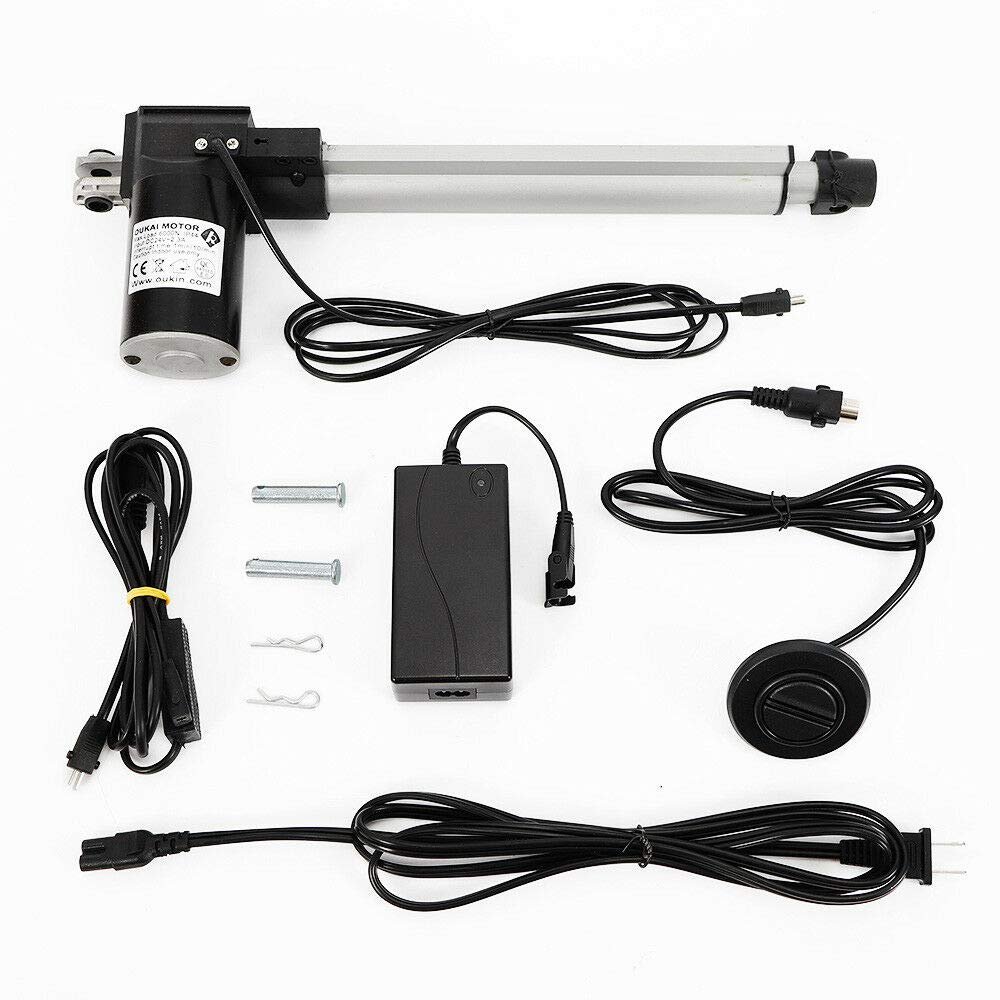

Packages:
1 x Recliner Replacement Motor Actuator
1 x 8-suffix AC Line
1 x DC Line
1 x Power Adapter
1 x Embedded Hand Controller
2 x Pins
2 x Cotter Pins
