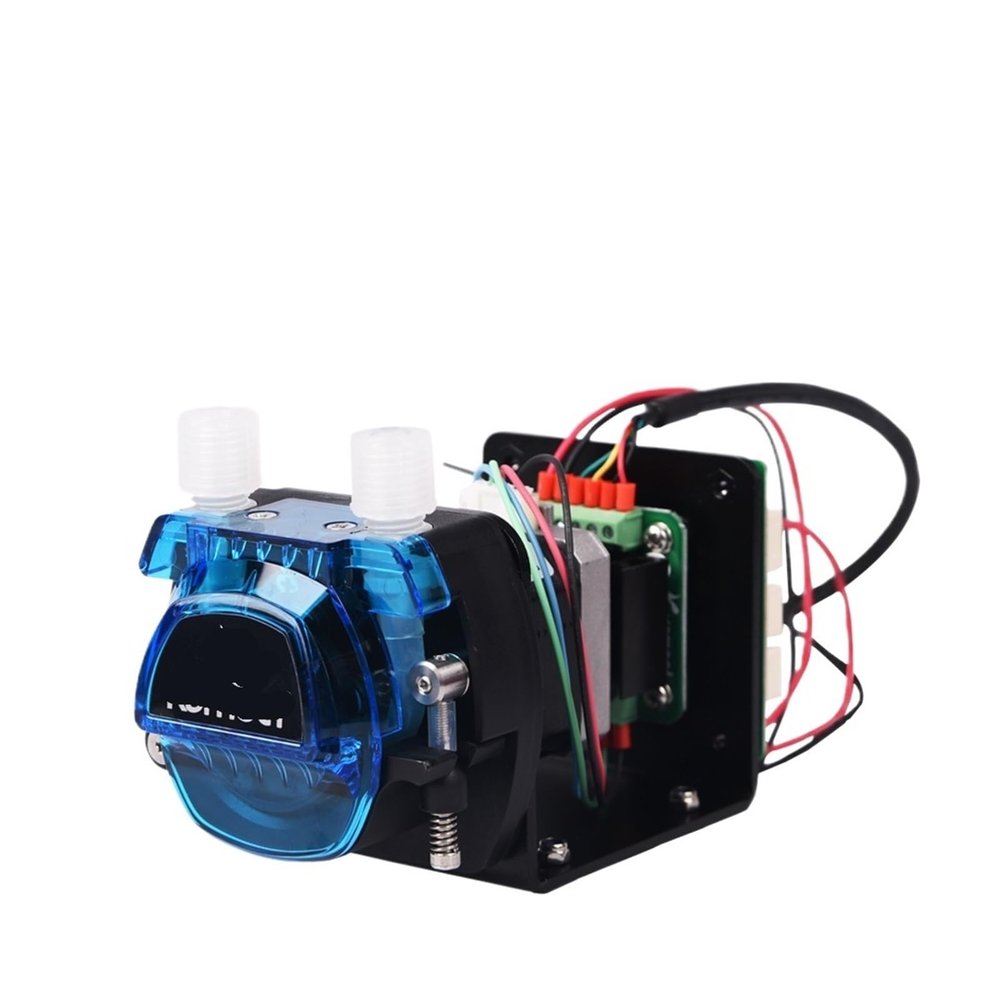

B25, S19, B14, S40 KCM-ODM high precision small peristaltic metering pump 12V/24V with stepper motor(B25,24v-3 Rollers)

Description

• Indoor Fountain Pumps

Indoor Fountain Pumps
Pump head
tube
Inner diameter: inner diameter
OD: Outer Diameter
speed
scope
(Revolutions per minute)
flow
(ml/min)
Oil pipe life
Oil pipe working temperature
6 rotor pump head
B14
Inner diameter 1.6 outer diameter 4.8mm
0.1-400
64
1000 hours
-51~132
Three-rotor pump head
B16
Inner diameter 3.2 outer diameter 6.4mm
0.1-400
Chapter 252
1000 hours
-51~132
Three-rotor pump head
B40
Inner diameter 4.0 outer diameter 7.2mm
0.1-400
Chapter 336
1000 hours
-51~132
Three-rotor pump head
B25
Inner diameter 4.8 outer diameter 8.0mm
0.1-400
Chapter 452
1000 hours
-51~132
Suitable for conveying viscous and non-viscous liquids
High precision, small pulsation
It can be placed outside the dashboard to be detected from the ground.
Simple structure and high reliability
Pump tube can be quickly replaced
Excellent motor performance
Basic parameters
Motor: Stepper motor
Voltage: 12V/24V, with driver board KMD-M42S and 2802 controller
Flow rate: 13.5~320ml/min
Tube material: Silicone tube/PharMed BPT
Installation method: ODMA/ODMB
Rotor: 3/6 rotor
Pump head: engineering plastic
Customized: Yes
Temperature: 0~40
Humidity: less than 80%
