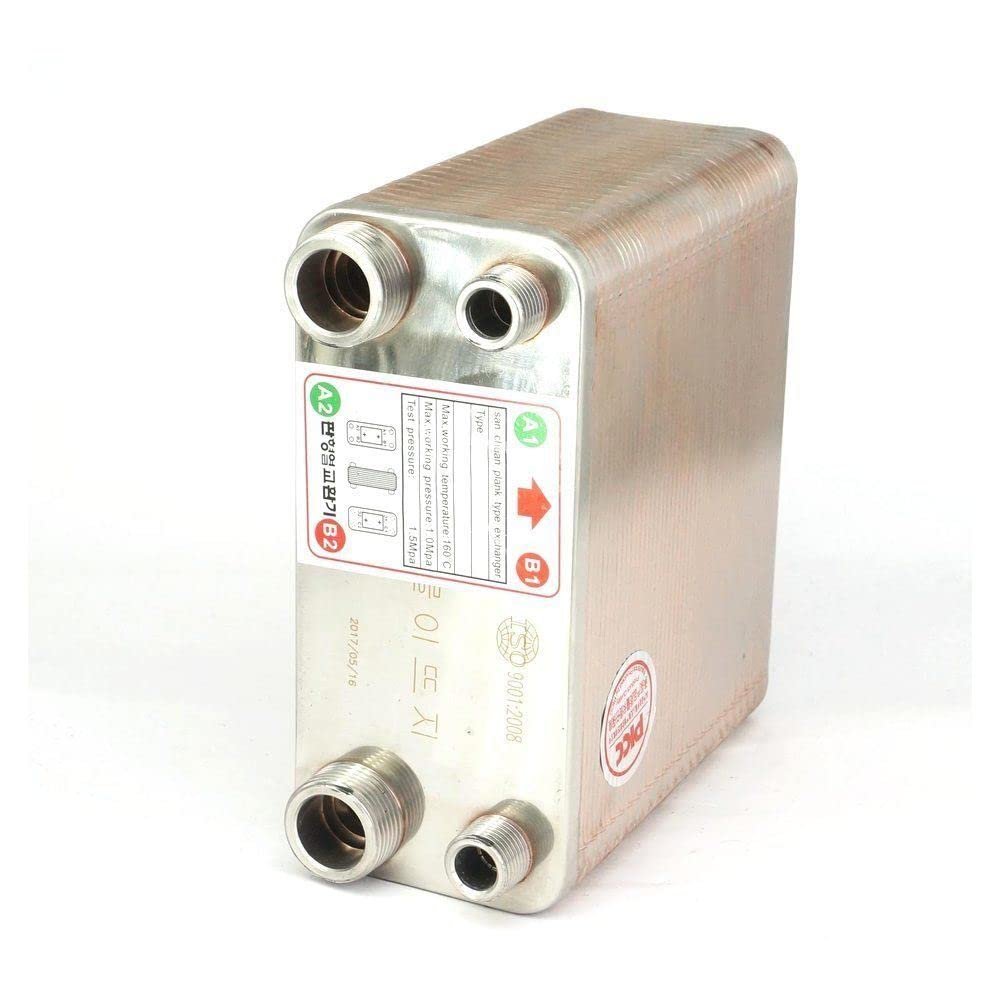

50 Plates Heat Exchanger Beer Wort Chiller Cooler 304 Stainless Steel for Home Brewing Beer 1.6Mpa

Description

• 50 Plates Heat Exchanger Beer Wort Chiller Cooler 304 Stainless Steel For Home Brewing Beer 1.6Mpa

Material:SUS 304 Stainless Steel (Food Grade)
WeldIing Material:99.9% Copper
Application:Home Brew Wort Chiller,Famliy Hot Water supply
Thread of Port A1.A2:1/2'' BSPT Male
Thread of Port B1.B2:1'' BSPT Male
Plates Number:50
Denension:195x85x155mm
Heat Transfer Area/plate: 0.028 m2(0.30 ft2)
Thickness of One Plate:0.25-0.35mm
Max Flowrate:12 m3/H
The Maximum Pressure: 1.6Mpa(228 PSI)
Refrigeration Capacity: 10 KW(2930 BTU/hour)
Working Temperature:-160 to + 185
Using Way for hot Wort:Port A1:Hot Wort,Port A2:Cold Wort
Port B1:Cold Water,Port B2:Hot Water
The flowrate of Cold Water higher the Better.
Using Way for Famliy hot water supply:Port A1:Cold Water,Port A2:Hot Water
Port B1:Central heating In;,Port B2:Central heating Out
Each bid For 1 PC!
We also have other relevant products.Please feel free to contact us!
