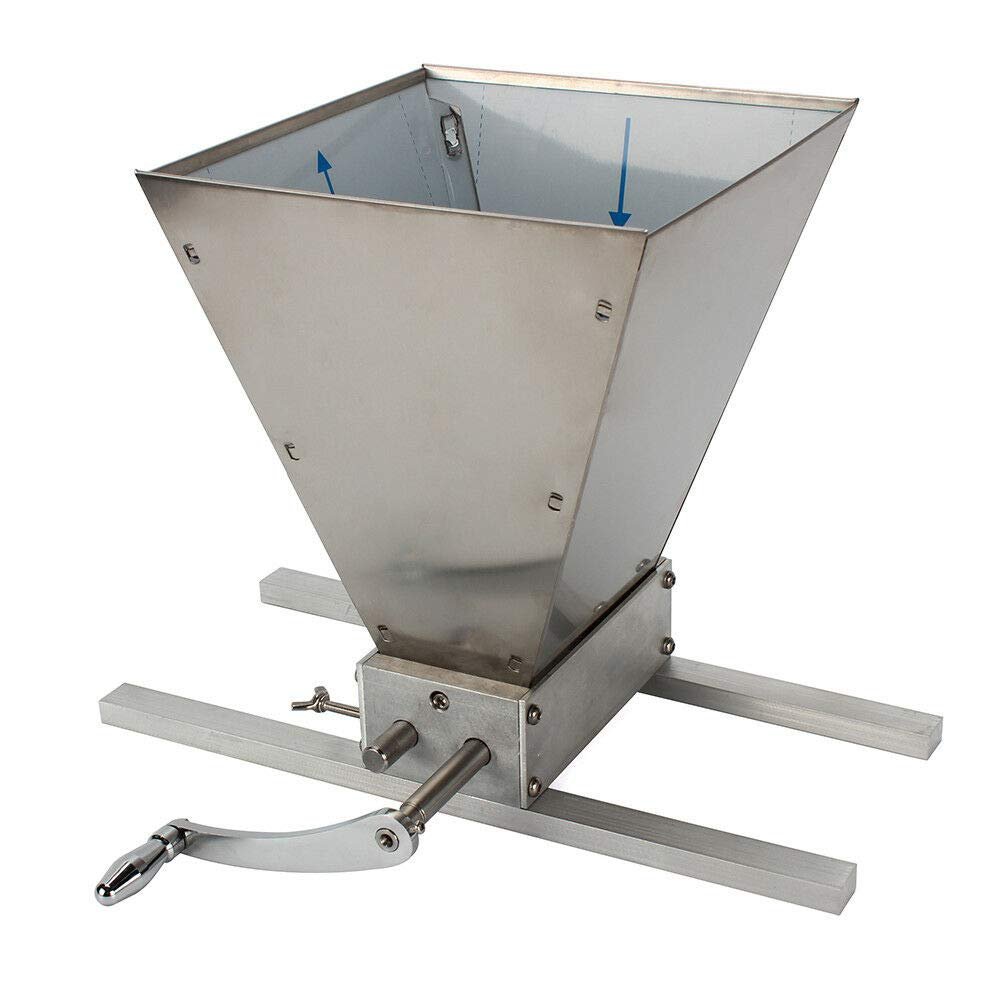

2 Rollers Manual Stainless Steel Malt Crusher Grain Malt Mill, Adjustable Barley Grinder Homebrew Grain Crusher Manual Grain Mill Low Speed Drill Available Manual Malt Mill with 7L Capacity Hopper

Description

• Long LifetimeThis Grain Mill is constructed using materials that will last a lifetime. Cold rolled steel for the rollers, and aluminum for body and stainless steel hopper and oil impregnated brass bushings. The grain mill is professional in grinding barley, wheat and other cereals. It is provided with adjustable 2 rollers which can be crushed cereal well and peeled shell off perfectly, so as to be good for brewing beer in future.
• 2 Rollers DesignThis equipment is perfect for large batches and high efficiency milling. With two rollers, all your grain will be crushed twice in one cycle. The crush is through the fixed gap between the top two rollers. The initial pass slightly flattens the grain, getting it ready for the next crush that breaks apart the grains and loosens the starch with minimal husk damage.
• SpecificationTotal height: 266mm(10.2"). Type: Grain crusher. Crank handle: 114mm(4.7"). 2 rollers: carbon steel. Capacity Volume: 7L. Hoppers: Stainless steel. Speed: 8lbs/min(3.6KG/min). Total height: 260mm(10.2")
• Max Capacity 11LBsThe roller body features an alloy block frame that houses three steel rollers on oil-impregnated bronze bushings. The drive shaft and all axles are integral to the roller, which makes clockwise or counter-clockwise drive possible. Stainless knurled knobs allow a gap spacing adjustment range of 0.070". Just loosen the adjustment screws, adjust the gap and tighten the screws.
• 100% SATISFACTION GUARANTEED If you have any problems with the purchasing, please feel free to contact us. We Upthehill are always at your service.

Description:
Color: Silver
Type: Grain crusher
2 rollers: Stainless steel
Grinder housing: Aluminum
Hoppers: Stainless steel
Speed:8lbs/min(3.6KG/min)
Total height: 260mm(10.2")
Hopper dimensions at top: 220 x 210mm((8.7" x 8.3")
Footprint size of grinder: 140 x 80mm(9.4" x 3.1")
Roller dimension: 76 x 150 x 50mm(3" x 6" x 2")
Single roller: 38 x 150mm (1.5" x 6")
The ribbed rollers are adjustable at both ends of the slot.
roller adjustable approx. 0.1 - 2.5 mm
With 2 aluminum bars
Crank handle: 120mm(4.7")

Features:
Width and roller diameter is optimized for use with power drill.
Adjustable rollers at both ends to give uniform crush.
12 TPI knurl to efficiently pull grain through rollers while leaving hull intact to form an excellent filter bed for sparging.
6" long adjustable gap.
Fully adjustable mill.
0.060" fixed primary gap, 0-0.065" fully-adjustable secondary gap.
Dual eccentric adjusters built from stainless steel for no galling.
8 lbs / minute is average throughput.
6" x 1.5" diameter stainless steel rollers.
Crankshaft can be turned clockwise or counterclockwise.
Durable alloy frame.
SAE 841 oil impregnated bronze bushings.
Heavy-duty two-roller mill with adjustable secondary gap-spacing.
Integral drive shaft and axles.
Mill can be hand-cranked.
You will need to supply or build a base.

Notice:
You will need to supply or build a base to set the mill over a grain bin or 5 gallon bucket.
Note: This item Cannot grind Soybeans and Corn.

Package Included:
1 x Malt Mill
1 x Hopper
1 x Crank Handle
2 x Aluminum Bars
Some accessories
